The BOUNDER Joystick Controlled Motorized Cart is ideal for quietly transporting heavy
loads in tight quarters with precision control while also traversing open spaces at speeds up to 5.4
mph.

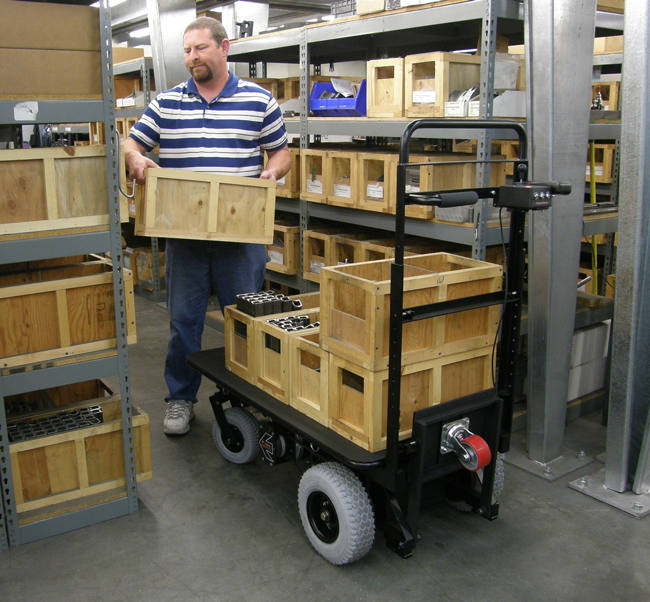

One person can safely move up to 2000 lbs of cargo. The operator can walk behind or ride
on a fold-down platform on the back of the cart. The fully proportional joystick applies power to
the motors in a smooth and controllable manner, reducing the risk of back injuries and improving
workplace safety. It is ideal for warehouses, mailrooms, hospitals, hotels, grocery and department
stores or any other location where frequent moving of heavy items is needed. The optional riding
platform can improve workplace efficiency by allowing the operator to move quickly from one place to
another. These carts are custom made to your specifications with various sizes, features and options.
POPULAR AREAS OF USE
Military
Construction
Airport
Hospital
Mailroom
Warehouse
Hotel
Grocery Store
Department Store
Manufacturing
Mortuary
Land/Hardscape
STANDARD FEATURES
1000 lb weight capacity
Stable 4-wheel design
Durable H-style frame uses 2.5” x 1.5” x 0.125” wall steel – TIG
welded for
superior strength
16.5” work deck height
26” wide x 48” long standard platform – alternate sizes
available
Super Torque 4M motors and brakes
Rugged chain drive – won’t slip in rain or snow; easy and
affordable to service
and maintain
Flip up/removable deck pan– allows for easy access to batteries and
other
system components
Dual group 27 battery box - for extended range and ease of
maintenance
Xtra Duty 12 position adjustable suspension forks with oversized
5/8” ID
(inside diameter) wheel bearings and 1” diameter fork stems and 1" ID caster barrel
bearings

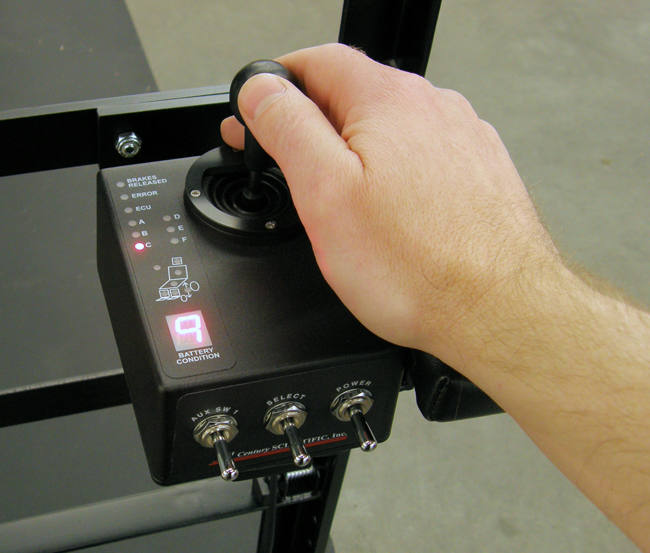

UE1 Series electronics – 6 drive programs, battery condition meter,
diagnostics, and more
Smart electric brake release – for easy
pushing
without using the joystick
Top Speed: 5.4 mph – slower speeds available
9” x 3.50” steel caster wheels – excellent on most surfaces
including grass and
dirt roads; various tire options
12.75” x 4.00” steel drive wheels – available with smooth or knobby
treads
Very stable rear wheel drive – does not fishtail at higher speeds,
unlike front
and mid-wheel drives
Durable black powder coated frame
Fully automatic 8A dual mode battery charger – charges both
gel-cell and lead
acid batteries; optional 12A charger available
Detailed Owner's Manual
Easy to service and maintain
***Improve workplace safety ***
***Improve productivity ***
POPULAR OPTIONS

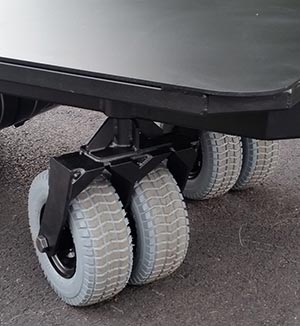

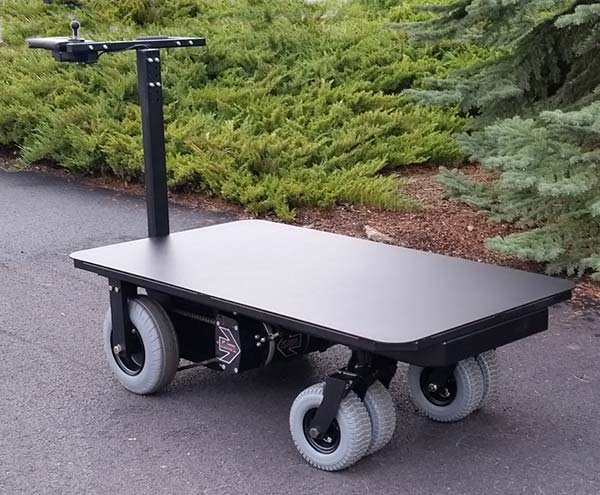

Increase Cargo Capacity to 2000 lbs – includes additional frame reinforcements,
dual casters & powerful ST4S motors

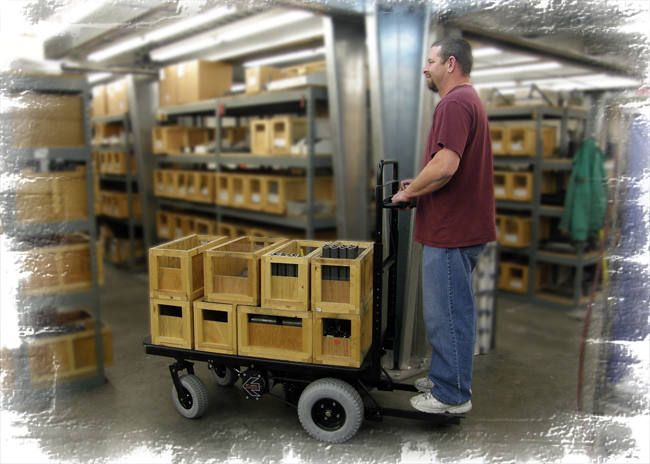

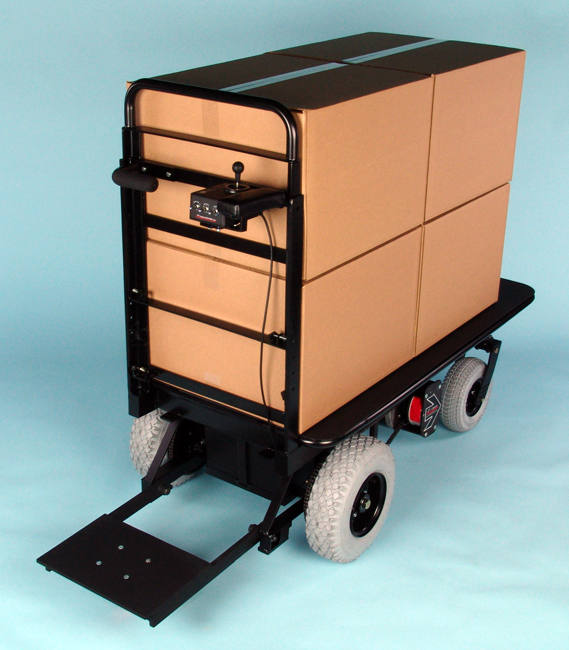

Fold down riding platform – allows the operator to ride behind the cart

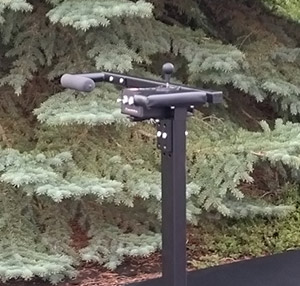

Adjustable height push rails – allows the joystick control box and the push
rail height to be adjusted to the needs of the operator
13” power deck height elevation – smoothly adjusts the work deck from 16.5" to
29.5" above the ground
30 degree power deck tilt – can be used to more easily unload items off the
work deck
Custom deck length, width and height – order to fit your needs
Custom built pull-behind carts with occupant seat
Custom side panels and rails for work deck
Custom shelves, baskets, cylinder tank holders and containers
Off-Road Package – allows for travel over grass, dirt and snow
Independent Drive Wheel Suspension – reduces vibration to payload when
traveling over obstacles or on rough terrain
Roller bumpers – reduces marking and damage to walls and doors
Many electronic options
Accessories: lights, horn, rear view mirror
POWER ELEVATING DECK HEIGHT
A toggle switch is used to elevate the deck height. 13” elevation
possible. Allows the deck height to be adjusted to the same height as the working surface
so less lifting is required when loading cart. Optional joystick control of deck height is
available.
POWER DECK TILT
A toggle switch is used to tilt the deck. Allows items to be
transferred
off the cart more easily. Optional joystick control of deck tilt is available.

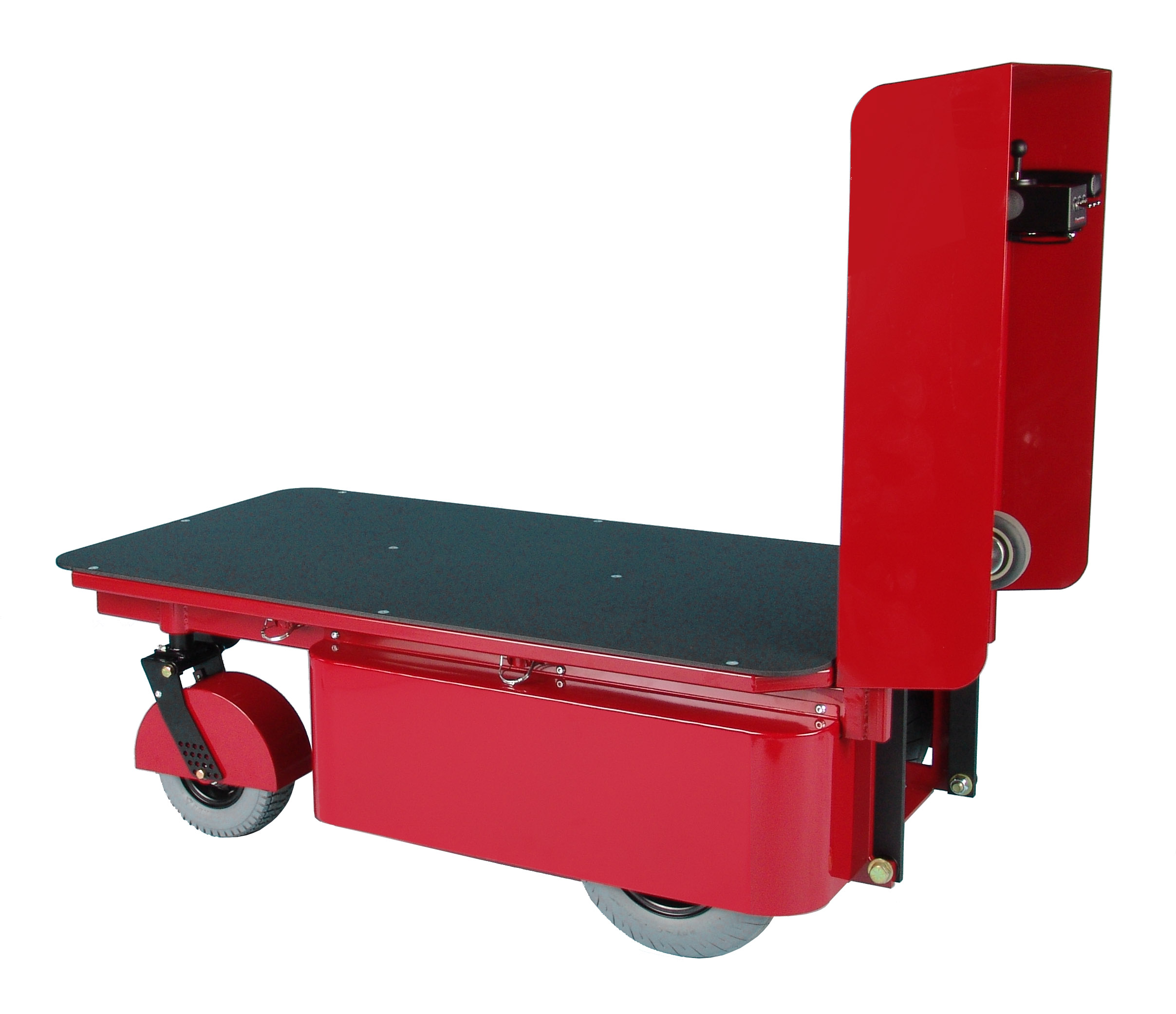

CUSTOM MOTORIZED DROSS CART
Primarily used in foundrys, the BOUNDER Motorized Cart allows a single operator
to move a crucible and skim dross quickly and easily. This version of the BOUNDER Motorized Cart
is customized by adding steel skirting to protect the cart's motors, electronics and tires from
splashes of molten metal during the skimming process.
